The effects of rolling shutter vs global shutter camera
When asked to define a camera and what it can produce, most would say that it is a device which is able to capture a moment in time. But how short of a moment can your camera capture? A second? A millisecond? A nanosecond?
Contrary to what most people believe, your camera, and most cameras out there are not able to capture ONE SINGLE moment in time. In fact, your camera probably actually captures multiple moments in time and splices them all together to give you one solid image. Most of the time, you’re none the wiser. But occasionally, you might notice that something isn’t quite right about your picture.
(For some of the more interesting ‘mishaps’ see below.)
What is rolling shutter?
Rolling shutter is the most common type of shutter found in mobile phones and digital cameras and the majority of video cameras. These cameras contain active-pixel sensors (CMOS), which typically employ rolling shutters in order to capture images.

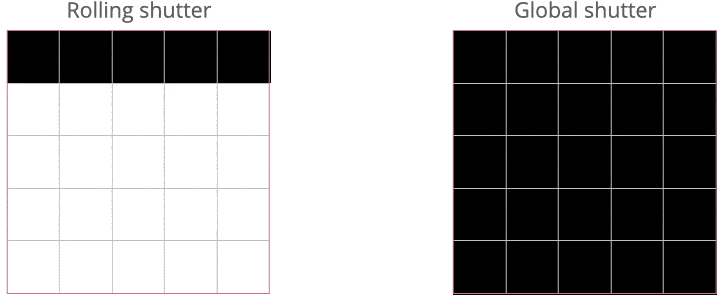

As previously mentioned, the sensor is not exposed entirely at the same moment in time, but rather has a ‘rolling’ quality to the exposure. It is as if a slit is moving either horizontally or vertically across the whole entire image. This occurs at a rate of the maximum frame rate of the particular sensor. For example, if the sensor operates at 30hz or 30fps, rolling shutter occurs over 1/30 of a second. If the sensor operates at only 10fps then rolling shutter occurs over about 1/10th of a second (0.1 seconds). In either case, that means tens of images are captured at slightly different moments in time.
While the process is still quite quick, and in most cases, the object of the sensors is not moving quickly enough to have any effect, occasionally, this process of image capturing can significantly affect the outcome of the photography.
What is the rolling shutter effect?
The rolling shutter effect creates distortions in the images taken. Since the sensor is exposed in rolling fashion, it actually captures the images and the light as ever so slightly different positions or brightness. So for images which are moving quite fast or for scenes with a high contrast in light, the final product may seem flawed. The most common effects are listed here. And see below for some mind-blowing images and videos.
The wobble effect, also known as the ‘jello effect’ is caused when the camera is held with an unsteady hand or when taking a picture from a fast moving car. The rolling shutter will produce a wobbly or fuzzy image. This is why your attempt to take in the beautiful scene out your train window is nearly impossible.
Similarly, if the subject of the camera or the camera itself is moving from left to right or vice versa, it can cause the image to bend diagonally in one direction. Imagine trying to take a photo of Usain Bolt, the fastest man alive as he runs by you from right to left. You’ll come away with an image in which you capture his head on the right side, his body in the middle of the image, and his legs and feet towards the left side of the frame. In essence, it will appear as if Bolt is leaning backwards to the right even though he is actually tilted slightly forward (left).
This is when the image shown in the final photo is something other than what was seen with the naked eye. This effect is most common when an object is moving at extreme speed and parts of the image are displayed incorrectly. For example, if the propeller of an airplane is photographed, often it can appear that a propeller blade on the left seems thinner to its counterpart on the right, or may even seem disconnected from the propeller completely.
Due to the fact that the sensor is exposed to the image at different times, it can create a partial exposure, especially if a flash is used. The flash may only be captured for part of the full exposure, incorrectly presenting two (or more) layers of brightness across the image.
What are the advantages and disadvantages to rolling shutter?
While you might assume that the rolling shutter effect means that there are no advantages to this sort of sensor, you would be wrong. There are several beneficial reasons that it is the most common type of sensor for cameras and photographers of all types.
Due to the nature of how rolling shutter is produced, it is much more economically feasible to produce. It is much easier to build complex electronics directly into the CMOS itself. This has allowed it to be used almost universally in smartphones and digital cameras since their inauguration.
In addition, the dynamic range is much wider in rolling shutter. Dynamic range describes the luminous intensity range or limits of the range when taking a photo or capturing an image. Wide dynamic range indicates that the final image will present a closer to true-life vision of the scene. It preserves nearly all of the dynamic range even in harsh lighting. With wide dynamic range, it minimizes the risk of ‘blow out’ between sun and edge of buildings
As mentioned above, the distortion to the final images is of course quite an obvious disadvantage. This is especially true when filming visual effects, objects in motion, or in scenes in which there are quick bursts of light, such as strobe lights or a lightning storm.
Other Uses of Rolling Shutter
While you might have been led to believe that rolling shutters are only found in digital, smartphone, and video cameras, so mostly consumer goods, there are a wide range of uses for rolling shutters.
Rolling shutters can be found in electronics, such as circuit board alignment and inspection, as well as identification for code and text reading.
Image analysis and documentation in microscopy
Pick & place applications in robotics
Code reading and multi-code reading of products in pharmaceuticals
What is global shutter?
So you might have already guessed it, but in case you didn’t - global shutter behaves in the way that most imagine a camera actually does. All pixels within the frame of the lens are captured at the exact same moment. The sensor in the camera is exposed to light in one single moment of time, typically about 1/10th of a second (0.1 seconds).
This means that the sensor is capturing the whole image in one moment of time. No rolling or scanning. And as you can imagine, this means that the rolling shutter effect is eliminated. There is no blurring, no skewing, and no spatial or temporal aliasing.
Cameras with global shutter, used to be by nature, a charge-coupled device (CCD), however as CCDs are partially obsolete, nearly all global shutter sensors on the market are now CMOS sensors. They are typically found in cameras for high end broadcasting, astronomy, and even some mobile mapping cameras.
What are the advantages and disadvantages to global shutter?
The consistency and accuracy of the images produced with CCD sensors and global shutter combine to give global shutter an edge over rolling shutter. The photographer can be assured that the images produced with this shutter will accurately portray the object of the image capturing, without any ‘jello effect’ or segmentation of object in question.
One of the most significant disadvantages to global shutter is the price tag. Typically, cameras with global shutter at up to 10 times more expensive than their rolling shutter counterparts. For most amateur photographers, smartphone producers, and even some professionals, global shutter is not worth the bang for the buck. Some manufacturers have even pulled global shutter out of their cameras when they found that the benefits didn’t warrant the additional costs.
In addition, global shutters are much more difficult to build. Without the ability to build the electronic components directly onto the sensor itself, production is much more complicated, which leads to the higher prices.
Another disadvantage to global shutter is the poorer quality of the image. While the distortions might be gone, the overall image quality and dynamic range decrease. This can mean that the ‘blow-out’ will substantially increase.
The speed of the image readout for global shutter is quite demanding, thus creating a much slower speed of only 1 to 40 MPS while rolling shutter boasts that of 100 to 400 MPS.
Other Uses of Global Shutter
Just as with rolling shutter, there are more applications for global shutter other than mere high-end cameras and video cameras for shooting movies and sporting events. Global shutter can be found in a wide array of technology:
Traffic management, allowing for the accurate capture of important information such as license plates
Astronomy, “the observation of transient events or in order to limit the effect of atmospheric turbulences.”
Intelligent transportation systems
And now for the fun stuff:
Rolling Shutter Effect in action
While quite unintentionally, the rolling shutter effect does create some mind-blowing images that seem made to be shared across the internet, so enjoy and share.
This video clip of airplane propellers out an airplane window looks as if the propellers are spinning the blades OFF the plane. They seem to be shedding off and falling to the ground.
This video does a great job of showing the start difference between a CCD sensor (global shutter) and CMOS (rolling shutter) from within the cockpit. The front propeller filmed with a CCD sensor shows the propeller spinning as you would see with your naked eye, while the other half shows the blades looking more like zebra stripes than straight, rigid blades.
The next clip is filmed from within a guitar as the musician strums the strings. The guitar strings no longer seem to keep their straight lines, but become radio waves with each finger or thumb pluck.
Spin a coin (or a fidget spinner)
Throw a frisbee
Take a picture of a reflection of someone blinking
Where we’re headed …
As previously mentioned, global shutter does give a much more accurate portrayal of the images and the scenery captured within the frame. And while the price tag and the level of difficulty involved in developing a camera with global shutter capabilities can deter many from attempting it, there are camera, photography, and 360 mapping companies which see it in their future. The use of global shutter on a more frequent basis will add new depth and clarity and completely change the game. Stay tuned for updates.
