Field scans non-electrified railroads in Norway with MMS

Table of Contents

Customer success story: From 6 months down to 10 days with Field Group’s newly devised mobile mapping solution combining Z+F Lidar, GNSS, IMU and our Mosaic X camera.

Field Group is one of Europe’s leading companies in aerial surveying, mapping, and land surveying. They are also the winner of the ‘Triple Crown’ in that they own all 3 models of Mosaic’s 360º mobile mapping cameras. (See more here.)

In one of their latest projects, they were tasked with scanning all of the non-electrified railways in Norway. They accomplished this by designing and developing their new state-of-the-art MMS combining LiDAR, GNSS, IMU and a 360º camera.

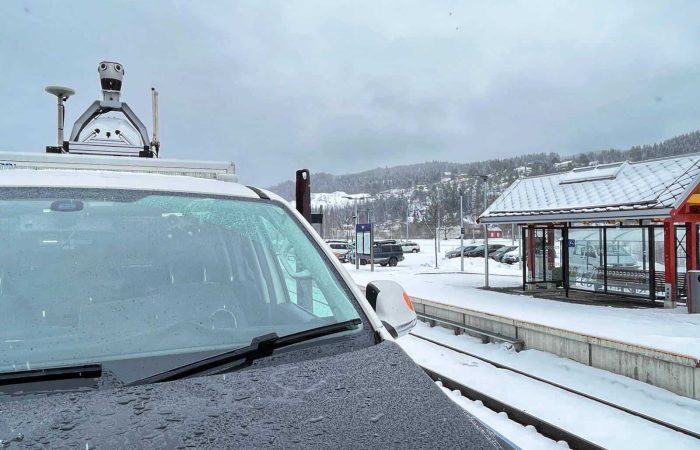

Field Group scans non-electrified railways in Norway with a MMS including Mosaic X camera and LiDAR
Field’s new mobile mapping rig can scan railways with a horizontal accuracy of 10mm, combined with extreme high-resolution images.

Rail authorities in Norway need to know the location of the tracks with a horizontal accuracy of 10mm. This data should be measured every year to know if and by how much the tracks are moving. Movement on the tracks can be caused by temperature changes or by the braking of heavy trains. Too much movement in the tracks can cause derailments, hence why it is so important to keep track of such movement.

This type of activity is not achievable with regular land surveys due to the many kilometers of rail tracks that needed to be covered. For this project in question, a total of about 1,400 kms, up and back, needed to be surveyed. So Field Group developed a method involving mobile mapping and a highly advanced post processing workflow.

The tracks are scanned with a combination of several sensors. This included a very high-quality LiDAR unit from Zoller+Fröhlich (Z+F) which grants submillimeter accuracy.  The generated point cloud is then geo-referenced using a combination of GNSS and IMU devices and post-processed with Field’s in-house built Terrapos software.

Terrapos take advantage of the many permanent GNSS base stations set up by the Norwegian authorities. The surveyors scan all of the tracks twice, after which the point clouds are matched using a very advanced algorithm called ‘Tpmatch’, which has also been developed in-house. Tpmatch utilizes all the available information from the point clouds and navigation sensors to achieve the optimal solution.

From the geo-referenced point cloud, they are able to measure the tracks with an absolute accuracy of about 8-10mm, which is within the specifications of the rail authorities.

“We have done several land survey campaigns to verify the result, and we see that in most cases, we are at about 4-6mm accuracy.”

– Kim Willem van Woensel Kooy, Field Product Manager

The MMS also includes the Mosaic X camera, one of our 360º mobile mapping cameras. Some objects, such as signs, are more easily identified using images rather than the point cloud. Typically, the images could be used for colorizing the point cloud as well. However, as the survey was conducted when the ground was covered in snow, this was not the case for this project. Another advantage of capturing image data is that the images also can be published in Field’s 360 web viewer, called Mapspace, enabling the customer to use the images to view or inspect their infrastructure.

mosaic X combine with lidar scans railways in norway

This newly devised mobile mapping rig and the method of data capture reduced the overall time frame of the project from a 6-month long campaign to only 10 days of data capture and about 4 to 5 weeks of data processing and quality control.

Additionally, by traditional methods, the project would most likely require hiring all available land surveyors in Norway, according to van Woensel Kooy.

“Without this method, the rail authorities would actually not be able to do these kinds of measurements.”

As the project was carried out under severe weather conditions, there is always a cause for concern regarding the functionality of the equipment in use.

However, Arkadiusz Szadkowski, VP Software Products, IT & Cyber Security, Field Group reported:

“The Mosaic X is operating very well in harsh Nordic conditions; it operated well in North Norway in the middle of winter. In extreme conditions, it has proven how robust it is and it can cope with tough conditions.”
