360-degree camera with LiDAR: Building an HD & accurate view of the world

Table of Contents

Where to look and what to look for when integrating a 360-degree camera with LiDAR laser scanners

Image-like digital model of everything around us

Mobile 3D mapping has come a long way during the last few decades and with the progress of LiDAR (Light Detection and Ranging) technology integrated with a 360-degree camera, it has become one of the most progressive and advanced methods of geospatial data collection. Being able to send hundreds of thousands or even millions of laser pulses per second to collect an incredible amount of accuracy and points allows 360-degree LiDAR sensors to create extremely precise 3D digital models (sometimes called digital twins) of both natural and human-made objects and surfaces of all kinds. Overlapping of LiDAR point clouds with high resolution images allow 360-degree cameras with LiDAR to achieve a precise, geo-referenced, image-like digital model of pretty much everything around.

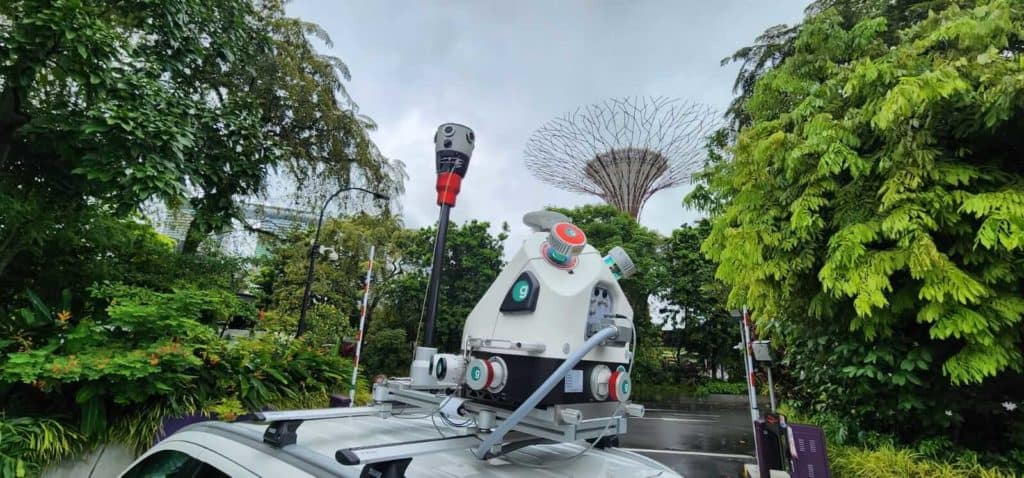

mosaic x camera in singapore with greehill and riegl lidar scanner
Mosaic X camera – a 360º mobile mapping camera – fully integrated with a RIEGL VMX-2HA scanner.

Who can make use of LiDAR integrated 360-degree cameras?

Those who benefit from the unprecedented precision and mobility that 360-degree cameras with LiDAR provide are many, including 3D mapping professionals, construction businesses, asset and maintenance departments, self-driving cars companies, authorities involved in landscape and nature protection, public sector and many others. The increasing quality of achievable LiDAR data combined with the progress in photogrammetry and post data processing methods have been and will continue opening new doors for a number of applications.

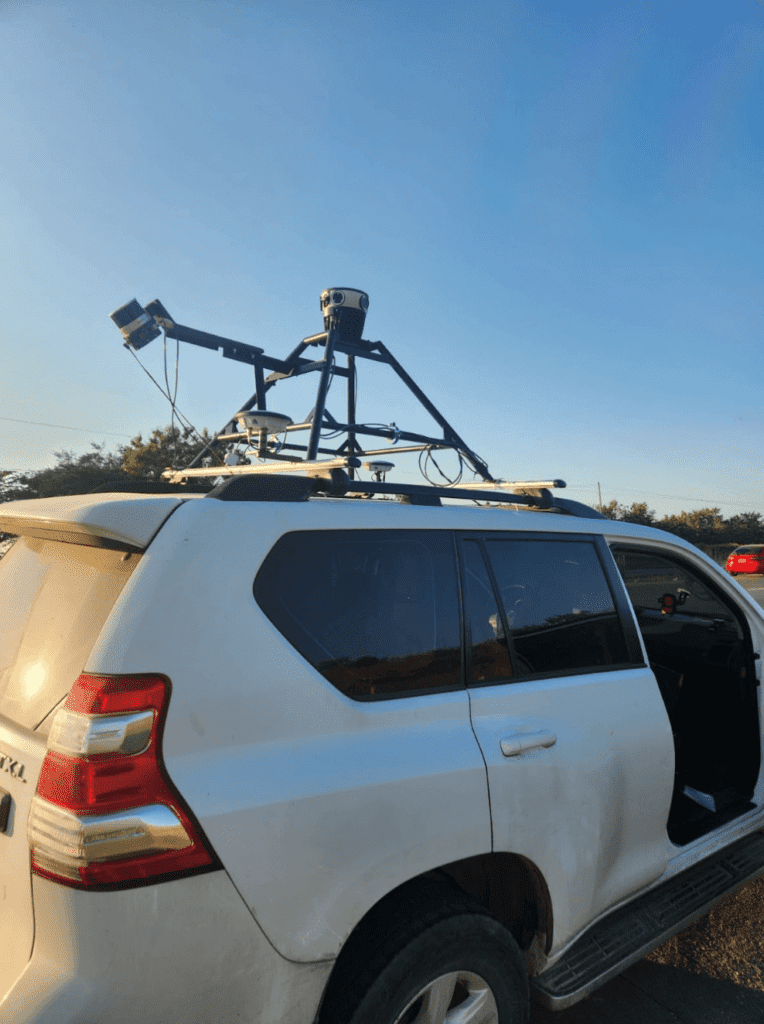

Mosaic 51 camera and LiDAR - colorizing point clouds in Colombia
The Mosaic 51 mobile 3D mapping LiDAR camera

Who can afford a 360-degree camera with LiDAR?

Although we might owe you an apology for a rhetorical question in the title of the paragraph, the costs of LiDAR sensors come hand in hand with the precision of LiDAR integrated mobile mapping systems.  The good news is though, the cost efficiency is naturally one of the key focus areas of LiDAR mobile scanners designers.

What types of LiDAR have been shaping 360-degree mobile mapping?

To allow this remote sensing method to meet the specific needs of a particular branch, different types of LiDAR have been developed and integrated with different technologies that vary in their functionality and characteristics, but let’s stick with those involved in mobile mapping for today.

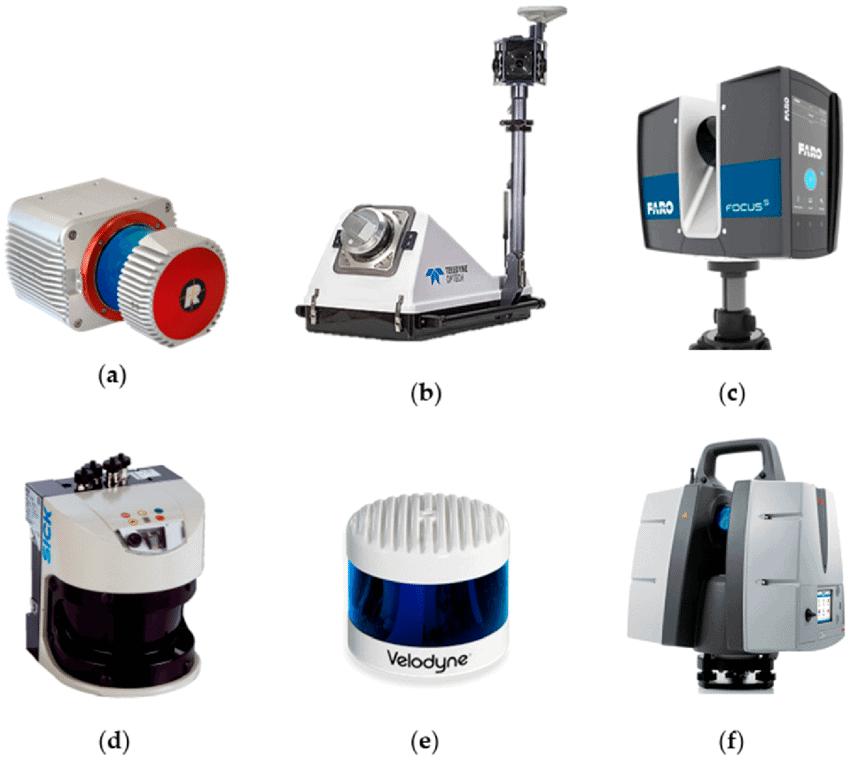

Lidar sensors:

  • (a) RIEGL VUX-1HA
  • (b) Teledyne-Optech Lynx HS300
  • (c) FARO Focus 350
  • (d) SICK LMS511
  • (e) Velodyne Alpha Puck
  • (f) Hexagon-Leica ScanStation P50

Depending on the platform and the inherent scale of area in which LiDAR data are collected, we differentiate between:

Airborne LiDAR

As the name suggests, an airborne LiDAR unit is mounted to a helicopter or drone sending laser pulses downwards as it moves, allowing data for 3D point cloud terrain models to be collected (with applications in topographic and bathymetric surveying, forestry and agriculture and others).

Terrestrial LiDAR

Terrestrial LiDAR systems are involved in applications that require a detailed and precise investigation and record of objects on the ground, at street level, to better capture the horizontal views of objects and the environment rather than the oblique views from airborne.

  • Static LiDAR, usually mounted to a tripod, is applied when a high level of accuracy of the distance of the surrounding environment towards a fixed point is needed (and trust us, the applications of which e.g. in atmospheric research would suffice for a separate article).
  • Mobile LiDAR technologies for mobile mapping, mounted usually to a moving vehicle, (a car but also a train or a boat) allow the scanner to collect point data and create a 3D model of its immediate surroundings while it moves forward in the investigated area. In the case of a 360-degree camera paired with LiDAR the area of interest is covered by thousands of high resolution images and point clouds taken by laser scanners, which together form a compact model for measurement and visualization (including the texture information). This is often referred to as ‘colorizing the point cloud.’

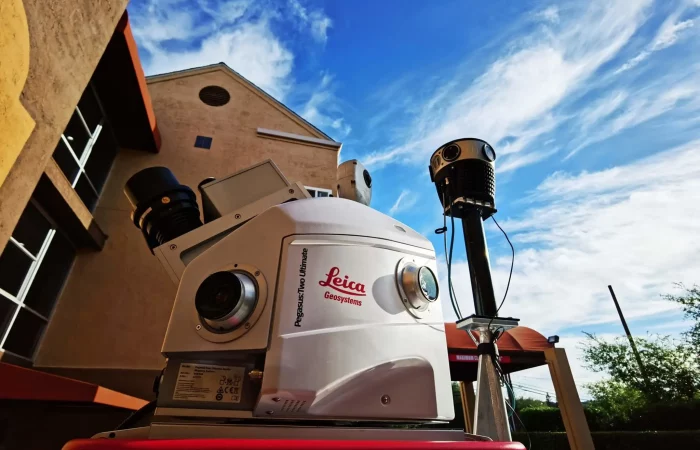

Mosaic 51, 360º mobile mapping camera mounting on WGI road surveying vehicle with Leica Pegasus scanner.

So where to look and what to look for when looking for 360-degree LiDAR for mobile mapping?

When trying to find your bearings among 360-degree LiDAR systems for mobile 3D mapping, a lot of variables need to be considered such as scan speed and final image capture, the data quality of the scans at high speed (while a 32-beam LiDAR could be sufficient for a vehicle moving at a speed of 50–60 km/h, for higher speeds, a higher rate of beams is necessary), image quality of the scanner, real-time and post data processing, its capability to cope with demanding weather conditions and many others.

Today we are going to have a closer look at some of the leading LiDAR companies’ 360-degree mobile mapping solutions.

Velodyne + Ouster = Ouster

Let’s start with some very fresh news, did you know that Velodyne merged with Ouster recently? They announced the successful completion of their merger of equals, effective February 10, 2023. The LiDAR powerhouse will keep the name Ouster and we are looking forward to witnessing the LiDAR adoption acceleration it promises. (See the press release

But let’s get back to 360-degree mobile mapping solutions that former Velodyne designed in house. Thanks to dual return mode, Velodyne lidar sensors deliver a high-resolution surround view image to accurately measure and analyze even very complex environments to build highly accurate 3D models for mobile mapping. Although dual return on one hand allows promising points per second, it comes on the other hand with computational complexity.

Let us sum up the technical specifications of Velodyne solutions featured for 360-degree mobile mapping.

ModelRange(m)Range Accuracy(cm)Nr.of beamsHorizontal FoV(◦)Vertical FoV (◦)Points per sRefresh rate (Hz)
HDL-32E100+-23236041.336950005 to20
Puck100+-316360303000005 to 20
Ultra Puck200+-332360406000005 to 20
Alpha Prime245+-31283604024000005 to 20

Lidar mobile mapping with Ouster 3D sensors

One of the key benefits of Ouster 3D sensors in general are the cost advantages of using simultaneous localization and 3D mapping (SLAM) instead of GPS INS systems (The good ones can cost tens of thousands of dollars). SLAM uses the lidar data itself to line things up. Its multi-beam flash lidar design makes it a cost-effective and versatile mobile mapping solution that outputs a comparable number of points. This is what Ouster 360-degree Lidar sensors offer:

ModelRange(m)Range Accuracy(cm)Nr.of beamsHorizontal FoV(◦)Vertical FoV (◦)Points per sRefresh rate (Hz)
OS2 -321-240+-2,5 – +-83236022,5655 00010, 20
OS2 – 641-240+-2,5 – +-86436022,51 311 00010, 20
OS2 – 1281-240+-2,5 – +-812836022,52 621 00010 – 20

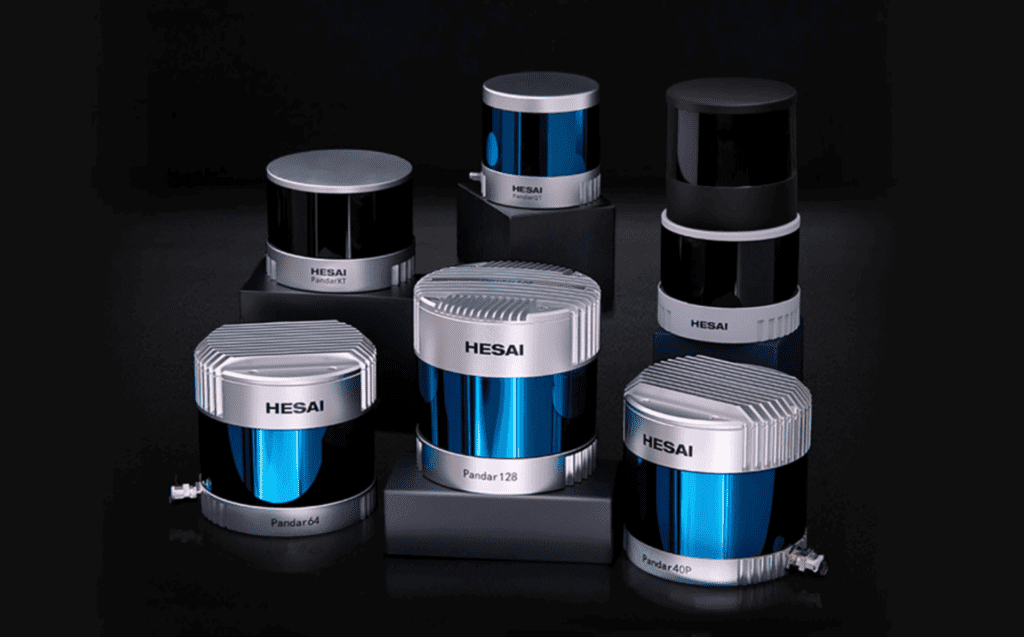

Heisai on the autonomous mobility mission

Chinese Heisai, which recently reached the milestone of 100,000 delivered units, is the global leader in LiDAR solutions. The company’s LiDAR products enable a broad spectrum of applications especially across driver assistance systems (ADAS) and autonomous mobility

See what technical specifications one can get with some of the LiDAR sensors with 360-degree FoV by Heisai:

ModelRange(m)Range Accuracy(cm)Nr.of beamsHorizon- tal FoV(◦)Vertical FoV (◦)Points per sRefresh rate (Hz)
PandarQT0,1 – 60+-364360104.238400010
PandarXT0,05 – 120+-132360316400005,10,20
Oandar40M0,3 – 200+-5 – +-2403604072000010,20
Oandar640,3 – 200+-5 – +-26436040115200010,20
Pandar128E3X0,3 – 200+-8 – +-212836040345600010,20

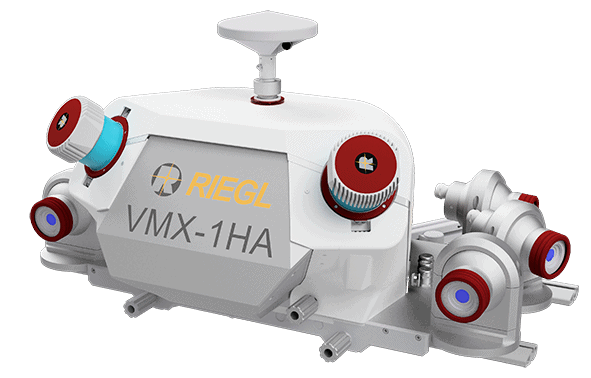

The house of RIEGL

RIEGL, who many consider the most well-respected LiDAR businesses out there, designs terrestrial laser scanners that allow integration with up to four additional cameras and are fully integrated with INS/GNSS which allows them to collect detailed and highly accurate 3D data rapidly and efficiently. Applications are wide ranging, including Topography, Mining, As-Built Surveying, Architecture, Archaeology, Monitoring, Civil Engineering and City Modelling.


See what there is at hand with some of the Riegl 360-degree Lidar sensors:

ModelRange(m)Range Accuracy(cm)Nr.of beamsHorizontal FoV(◦)Vertical FoV (◦)Scan lines/sPulse repetition rate
VMY-21- 2700,1na360na250600 kHz
VMY-11- 2700,1na360na100300 kHz
VMX-2HA1,2 – 4750,5na360na500up to 3.6 MHz

You can learn more about the integration between the RIEGL VMX-2HA and the Mosaic X camera by joint customer greehill here.

When Mosaic met RIEGL

The restless innovation that LiDAR scanners undergo is constantly being refined and increasing both the volume of data that can be used to obtain an increasingly accurate 3D model of the world around us and the speed and accuracy of its collection. Integrating a 360-degree high-resolution camera with Lidar allows an almost real-time creation of both geo-referenced and photorealistic digital twins of even complex environments of a vehicle moving up to 100 km/hour.

Extreme high resolution 360º-cameras coupled with LiDAR was something that had been lacking in the market for a long time. Until the Mosaic X

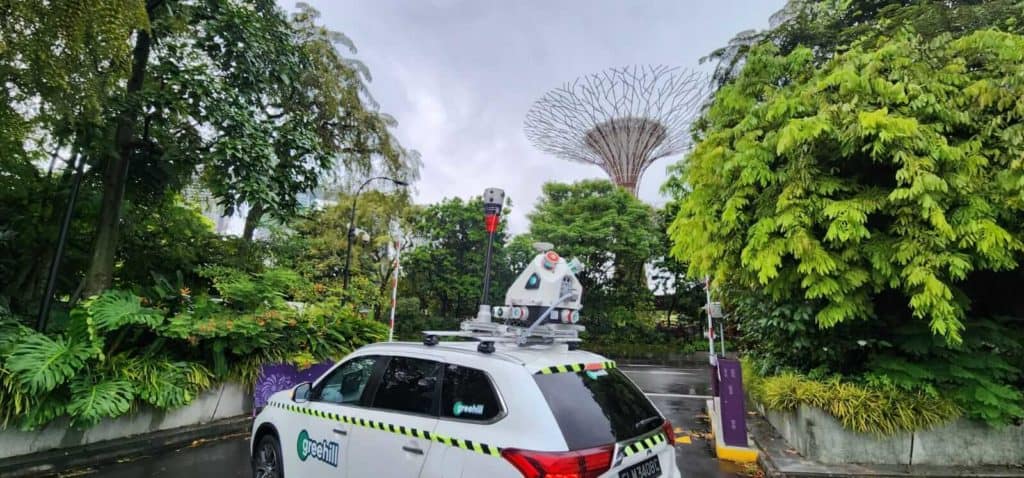

greehill is currently capturing urban forest data in Singapore with their RIEGL VMX-2HA scanner, integrated with a Mosaic X camera system.

Mosaic X integration with RIEGL V-Line Scanners makes it the highest resolution 360-degree mobile mapping camera featuring global shutter for photogrammetry ability at highway speeds to be available to users. Being able to integrate with any industry standard LiDAR scanner for mobile mapping together with restless innovation efforts at Mosaic makes a combination that drives Mosaic 360-degree cameras very much forward on their mission to build not only a better but also high-definition and geo-referenced view of the world.

What camera images + LiDAR means for users

The coupling of LiDAR and 360º images grants users the benefits of both worlds. On one hand they get a highly accurate point cloud captured quickly and accurately which can be used for photogrammetry at scale. This is highly advantageous when precise measurements are needed, and every centimeter and millimeter matter.

Colorized point clouds allow for high precision and high definition images for road infrastructure maintenance, road inventory and surveying.
Colorizing the point cloud: Mosaic 51 360º camera images paired with LiDAR data

On the other hand, the images produce a photorealistic image of what the environment in question really looks like. As many users of the data may be lay people who are unfamiliar with a point cloud or unable to comprehend what a detailed point cloud is showing, images are understandable by anyone who looks at them.

In other words, while LiDAR is very good at capturing extreme accuracy, it can’t do textures. even the most detailed lidar scan will never look real if it doesn’t have good photographic textures. Neural / ai enhanced meshes can be believable, but only if they can utilize real photographic textures.

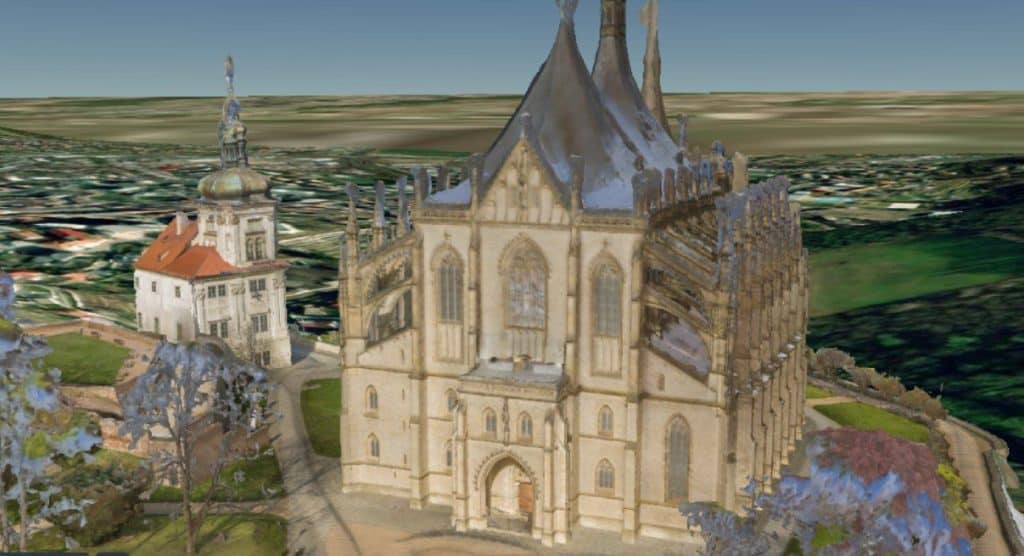

Kutna Hora Viking Cesium
Textured mesh from image only data collected with the Mosaic Viking. See a video displaying the whole model here.

Photos are able to pick up and display details that are not possible with LiDAR such as graffiti on building walls or stickers on light poles.

mosaic 51 asset and infrastructure inspection

Rust on the transformers and wiring can also not be picked up by LiDAR and necessitates high-definition imagery.

LiDAR increases the accuracy when measuring the cracks in the road surface or the distance of tree growth for Right of Way and images add an extra dimension that only adds more benefit to the end user.

Looking to acquire a high-resolution 360º mobile mapping camera for use in your LiDAR MMS? Contact us today, and let’s see how we can help you.
